Specs
General
| Property | Zenmuse H20 | Zenmuse H20T |
|---|---|---|
| Weight | 678±5 g | 828±5 g |
| Dimensions | 150×114×151 mm | 167×135×161 mm |
| Ingress Protection Rating | IP44 | IP44 |
| Operating Temperature | -20° to 50° C | -20° to 50° C |
| Storage Temperature | -20° to 60° C | -20° to 60° C |
| Laser Safety | Class 1M (IEC 60825-1:2014) | Class 1M (IEC 60825-1:2014) |
| Supported Aircraft | Matrice 300 RTK | Matrice 300 RTK |
Gimbal
| Property | Value |
|---|---|
| Angular Vibration Range | ±0.01° |
| Mount | Detachable |
| Controllable Range | Pitch: -120° to +30° |
| Yaw: ±320° | |
| Mechanical Range | Pitch: -132.5° to +42.5° |
| Yaw: ±330° | |
| Roll: -90° to +60° |
Zoom Camera
| Property | Value |
|---|---|
| Sensor | 1/1.7″ CMOS, 20 MP |
| Lens | DFOV: 66.6°-4° |
| Focal length: 6.83-119.94 mm | |
| Aperture: f/2.8-f/11 (normal), f/1.6-f/11 (night scene) | |
| Focus: 1 m to ∞ (wide), 8 m to ∞ (telephoto) | |
| Focus Mode | MF/AF-C/AF-S |
| Exposure Mode | Auto, Manual |
| Exposure Compensation | ±3.0 (1/3 increments) |
| Metering Mode | Spot metering, Center-weighted metering |
| AE LOCK | Supported |
| Electronic Shutter Speed | 1 ~ 1/8000 s |
| ISO Range | Video: 100 – 25600 |
| Photo: 100 – 25600 | |
| Video Resolution | 3840×2160@30fps, 1920×1080@30fps |
| Video Format | MP4 |
| Video subtitles | Supported |
| Photo Size | 5184 × 3888 |
| Photo Format | JPEG |
Wide Camera
| Property | Value |
|---|---|
| Sensor | 1/2.3″ CMOS, 12 MP |
| Lens | DFOV: 82.9° |
| Focal length: 4.5 mm | |
| Aperture: f/2.8 | |
| Focus: 1 m to ∞ | |
| Exposure Mode | Auto |
| Exposure Compensation | ±3.0 (1/3 increments) |
| Metering Mode | Spot metering, Center-weighted metering |
| AE LOCK | Supported |
| Shutter Speed | 1 ~ 1/8000 |
| ISO Range | Video: 100 – 25600 |
| Photo: 100 – 25600 | |
| Video Resolution | 1920×1080@30fps |
| Video Format | MP4 |
| Video subtitles | Supported |
| Photo Size | 4056 x 3040 |
| Photo Format | JPEG |

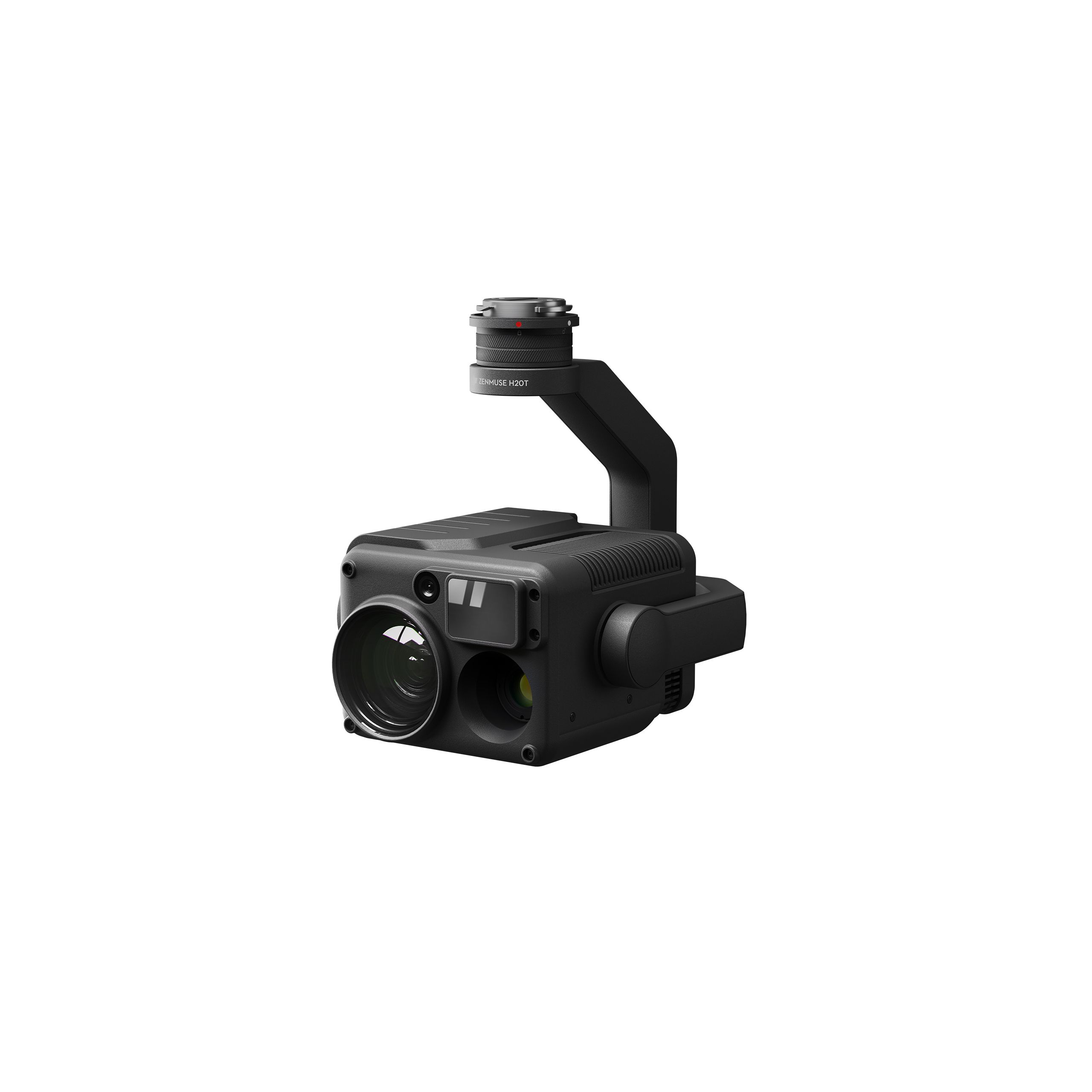

Thermal Camera (Zenmuse H20T)
| Property | Value |
|---|---|
| Sensor | Uncooled VOx Microbolometer |
| Lens | DFOV: 40.6° |
| Focal length: 13.5 mm | |
| Aperture: f/1.0 | |
| Focus: 5 m to ∞ | |
| Digital Zoom | 1x, 2x, 4x, 8x |
| Video Resolution | 640×512 @ 30 Hz |
| Video Format | MP4 |
| Image Resolution | 640×512 |
| Image Format | R-JPEG (16 bit) |
| Pixel Pitch | 12 μm |
| Spectral Band | 8-14 μm |
| Noise Equivalent Temperature Difference (NETD) | ≤50 mK @ f/1.0 |
| Temperature Measurement Method | Spot Meter, Area Measurement |
| Scene Range | -40 °C to 150 °C (High Gain) |
| -40 °C to 550 °C (Low Gain) | |
| Temperature alert | Supported |
| FFC | Auto/ manual |
| Palette | White hot/Fulgurite/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot |
Laser Rangefinder
| Property | Value |
|---|---|
| Wave length | 905 nm |
| Measurement range | 3-1200 m |
| Measurement accuracy | ± (0.2 m + D×0.15%) |
| Safety Regulation Level | Class 1M |
| Accessible Emission Limit (AEL) | 327.84 nJ |
| Reference Aperture | 18mm length, 18mm width (20.3mm diameter if equivalent to circular) |
| Max Laser Pulse Emission Power Within 5 Nanoseconds | 65.6 W |
Features
- Hybrid Optical Zoom: 23×（DFOV：4°，EQV：556.2mm）
- Max. Zoom: 200×（DFOV：0.5°，EQV：4800mm）
- One Click Capture: One click to save the video or picture of 3 cameras (zoom, wide, and thermal camera) simultaneously
- Point to Aim: Double click on the wide/thermal camera view, then the system will automatically move the gimbal to focus on the point of interest
- High-Res Grid Photo: Frame an area of interest in the wide camera view, and the zoom camera will automatically capture a set of 20 MP images of the area. These images are stored together with an overview image that can be viewed in greater detail.
- Night Scene: Supported (zoom camera)
- Timestamp: Including GPS, date, and time
Storage
- Supported SD Card: MicroSD card (Max capacity: 128 GB, UHS-1
