- Please note: Cube Orange Set+ flight controller currently does not support PX4 firmware and old apm firmware, because the chip is newer. Firmware above apm v4.2.3 can be used.
- Specification-
- Specifications
- Chassis Material: CNC Aluminum Alloy (cube+) + ABS Molding (Carrier Board)
- Operating Temperature: 10~ +55° IMU with temperature control
- PWM I/Os: 14
- Mavlink serial Interface: 2
- Number of GPS supported: 2
- Debug Interface: 1
- I2C Interface: 1
- CAN FD Interface: 2
- Protection Function
- Smart RTL
- Battery low protection
- Geo-Fencing
- RC signal protection
- Hardware
- Main Processor: STM32H753VIT6
- Coprocessor: STM32F100
- Supported RC signals: PPM / SBUS / DSM
- Power redundancy: Triple redundancy
- Sensors: Triple IMU System
- Supported firmware: Ardupilot and PX4 opensource flight controller firmware
- Supported vehicle type: Fixed-wing planes, Copters with 3-8 motors, Helicopters, VTOL planes, Rovers/boats/submarines
- Weight: 73 g

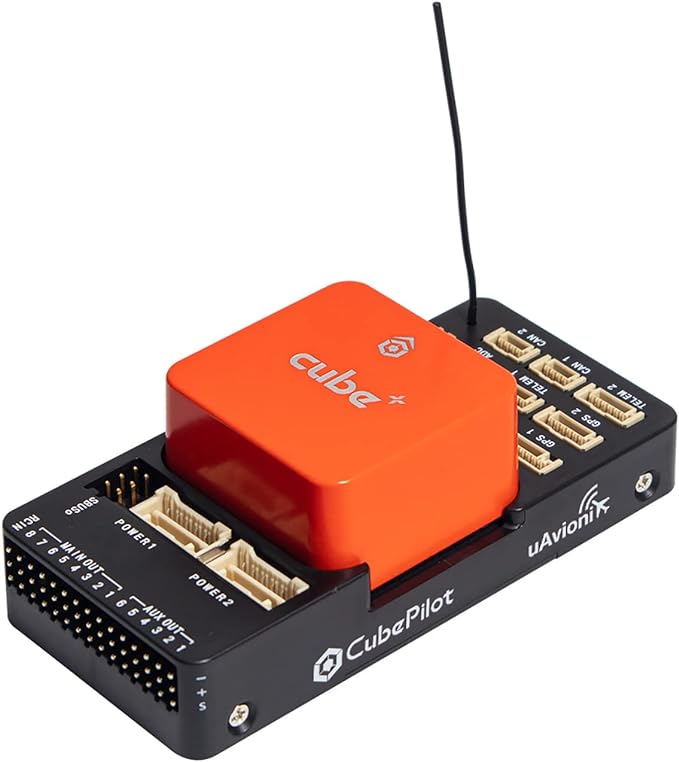

Hex Flight Controller Cube Orange+ Standard Set ADS-B (IMU V8)
In stock
- Cube Orange Set+ flight controller currently does not support PX4 firmware and old apm firmware, because the chip is newer. Firmware above apm v4.2.3 can be used.
- The Cube Orange+ Standard Set (IMU V8) features a high-performance H7 processor and the 1090MHz ADS-B receiver from uAvionix.
- H7 has double-precision (DP) FPU, 1MB RAM, and 400 MHz CPU processor providing high performance, extremely fast operation, and a stable solution for flight.
- PWM output supports switching between 3.3 and 5 V signal levels. Voltage switching can be done by ground control station software. This provides better compatibility with external peripherals.
- Real-time triple redundant lMU system on the flight controller provides backups if errors occur,enhancing safety and reliability.
- Support for multiple vehicle types,including Helicopter, multicopter, fixed wing, VTOL, Rover, Boat, Submarine, etc.
