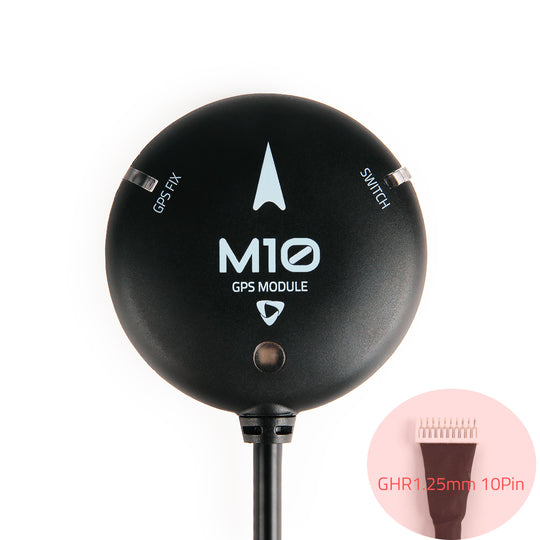

- The M10 GPS uses multi-constellation GNSS powered by u-blox M10 series, a concurrent GNSS receiver which can receive and track multiple GNSS systems.
- Owing to the multi-band RF front-end architecture all four major GNSS constellations, GPS,Galileo, GLONASS and BeiDou can be received concurrently.
- It also comes with the IST8310 compass, tricolored LED indicator, buzzer, and a safety switch.
- There are 3 different connectors options for different purposes.
- This module ships with a baud rate of 115200 5Hz.
- The high-gain 25 x 25 mm patch antenna provides excellent performance and the omnidirectional antenna radiation pattern increases flexibility for device installation.
- It features active circuitry for the ceramic patch antenna, rechargeable backup battery for warm starts.
Specification
| Holybro M10 GPS | Holybro M9N GPS | |
| GNSS Receiver | Ublox M10 | Ublox M9N |
| Number of Concurrent GNSS | Up to 4 GNSS | Up to 4 GNSS |
| BeiDou | BeiDou | |
| Galileo | Galileo | |
| GLONASS | GLONASS | |
| GPS | GPS | |
| QZSS | QZSS | |
| Frequency Band | GPS L1 | GPS L1 |
| Galileo E1 | Galileo E1 | |
| GLONASS L1 | GLONASS L1 | |
| BeiDou B1 | BeiDou B1 | |
| SBAS L1 | SBAS L1 | |
| QZSS L1 | QZSS L1 | |
| Compass | IST8310 | IST8310 |
| Output Protocol | UBX (U-blox) | UBX (U-blox) |
| NMEA | NMEA | |
| Accuracy | 2.0m CEP | 1.5m CEP |
| Nav. Update Rate | Up to 25 Hz (single GNSS), | Up to 25 Hz (4 concurrent GNSS) |
| Up to 10 Hz (4 concurrent GNSS) | ||
| GNSS Augmentation System | EGNOS, GAGAN, MSAS and WAAS | EGNOS, GAGAN, MSAS and WAAS |
| QZSS: L1S | QZSS: L1S | |
| Default Baud Rate | 115200 | 115200 |
| Input Voltage | 4.7-5.2V | 4.7-5.2V |
| Port Type | JST-GH-10P | JST-GH-10P |
| Antenna | 25 x 25 x 4 mm ceramic patch antenna | 25 x 25 x 4 mm ceramic patch antenna |
| Power consumption | Less than 200mA @ 5V | Less than 200mA @ 5V |
| Operating Temperature | -40~80C | -40~80C |
| Dimension | φ50 x14.4 mm | φ50 x14.4 mm |
| Weight | 32g | 32g |
| Cable Length | 26cm (42cm cable purchase separately) | 26cm (42cm cable purchase separately) |
| Other | Tri-color LED | Tri-color LED |
| Onboard Buzzer | Onboard Buzzer | |
| Safety Switch | Safety Switch | |
| LNA MAX2659ELT+ RF Amplifier | LNA MAX2659ELT+ RF Amplifier | |
| Rechargeable Farah capacitance | Rechargeable Farah capacitance | |
| Low noise 3.3V regulator | Low noise 3.3V regulator |
