Performance data |
|
|---|---|
| Impact rate at rated speed | 0 – 4,800 bpm |
Additional data |
|
|---|---|
| Rated input power | 720 W |
| Impact energy (according to EPTA 05/2016) | 2 J |
| Weight | 2.3 kg |
| Tool holder | SDS plus |
Drilling range |
|
|---|---|
| Drilling dia. concrete, hammer drill bits | 4 – 22 mm |
Total vibration values (Hammer drilling in concrete) |
|
|---|---|
| Vibration emission value ah | 14.7 m/s² |
| Uncertainty K | 1.5 m/s² |
Total vibration values (Chiselling in concrete) |
|
|---|---|
| Vibration emission value ah | 11.9 m/s² |
| Uncertainty K | 1.5 m/s² |
Hammer drilling in concrete |
|
|---|---|
| Vibration emission value ah | 14.7 m/s² |
| Uncertainty K | 1.5 m/s² |
Chiselling in concrete |
|
|---|---|
| Vibration emission value ah | 11.9 m/s² |
| Uncertainty K | 1.5 m/s² |
The A-rated noise level of the power tool is typically as follows: Sound pressure level 93.5 dB(A); Sound power level 104.5 dB(A). Uncertainty K= 3 dB.
GBH 220 PROFESSIONAL: FURTHER INFORMATION
Product Highlights

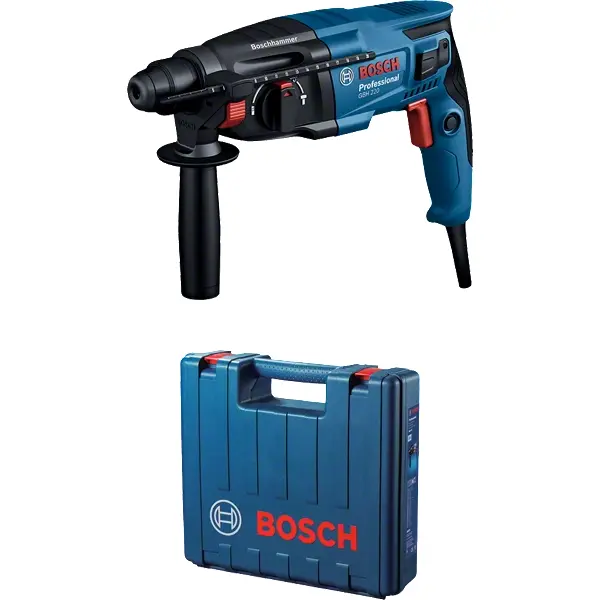

Bosch’s GBH 220 Professional rotary hammer with SDS-plus technology is the ideal compact entry-level solution for hammer drilling. Its powerful 720 W motor and 2.0 J of impact energy make for effective hammer drilling in concrete of up to 22 mm in diameter. Versatility and convincing results are safeguarded by the three-mode rotary hammer for hammer drilling, drilling, and chiselling. This compact rotary hammer offers professional Bosch hammer performance within reach.
